Plastic Bottle Molding Machines and Moulds
LIANXIN supplies IBM-H hybrid-servo and IBM-E all-electric injection blow molding machines, the four-station IBBM-50E, BPET one-step injection stretch blow molding systems, matched moulds and auxiliary equipment. The correct choice depends on bottle material, geometry, neck finish, appearance, output target and validation requirements.

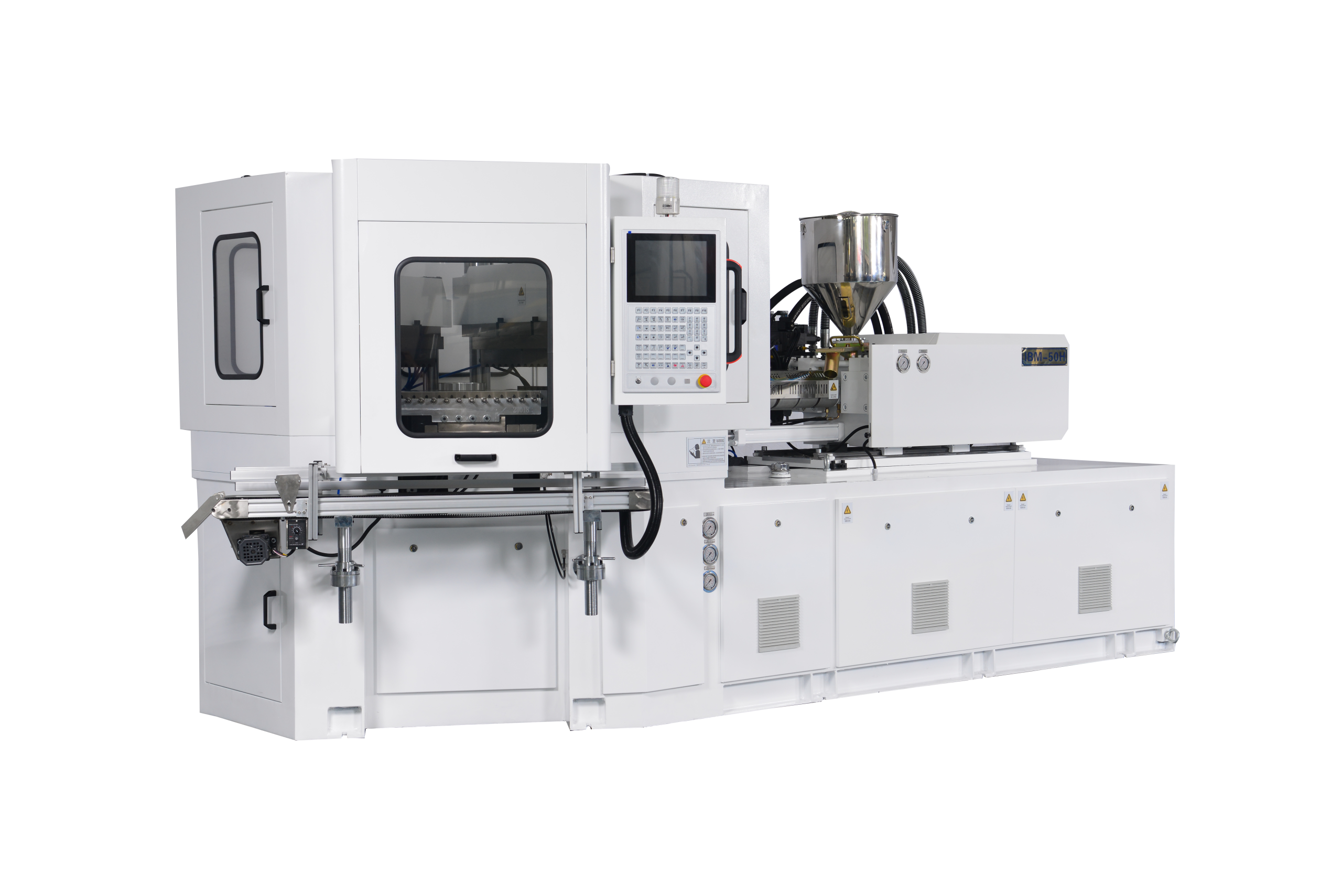

IBM-H hybrid-servo injection blow molding
IBM-H machines use an electro-hydraulic hybrid servo system. The catalogue lists IBM-30H, IBM-50H, IBM-80H and IBM-135H for HDPE, LDPE, PE, PP, PS and EVA projects. Source materials describe energy savings of up to about 40% against a conventional baseline under matched conditions; actual consumption varies by bottle, resin, cycle and utilities.

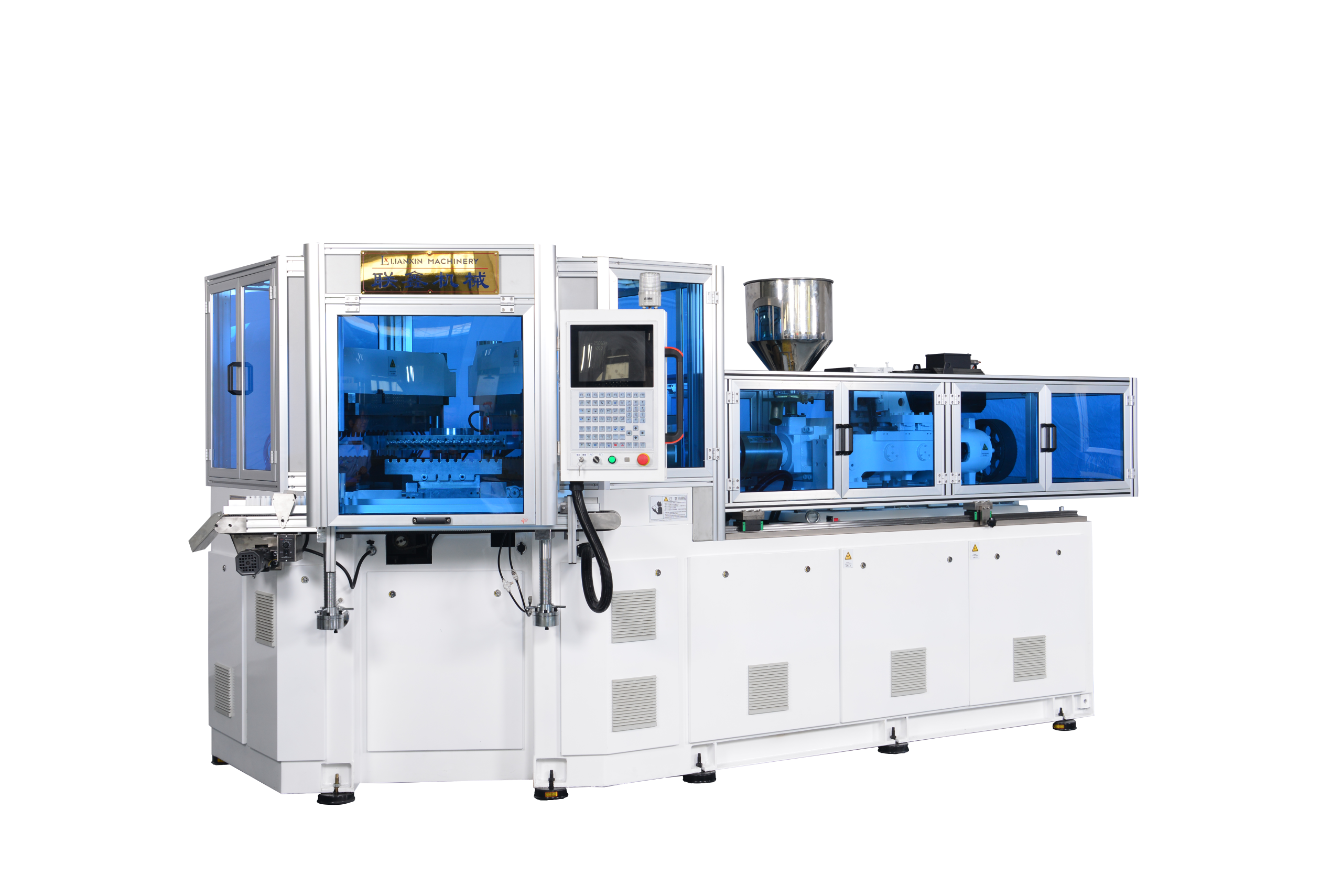

IBM-E all-electric injection blow molding
IBM-E machines use a full electric servo system. The catalogue lists IBM-30E, IBM-50E, IBM-80E and IBM-135E. Source materials describe savings of up to about 70% under matched project conditions. Any guaranteed consumption value must be defined in the signed project specification and acceptance method.

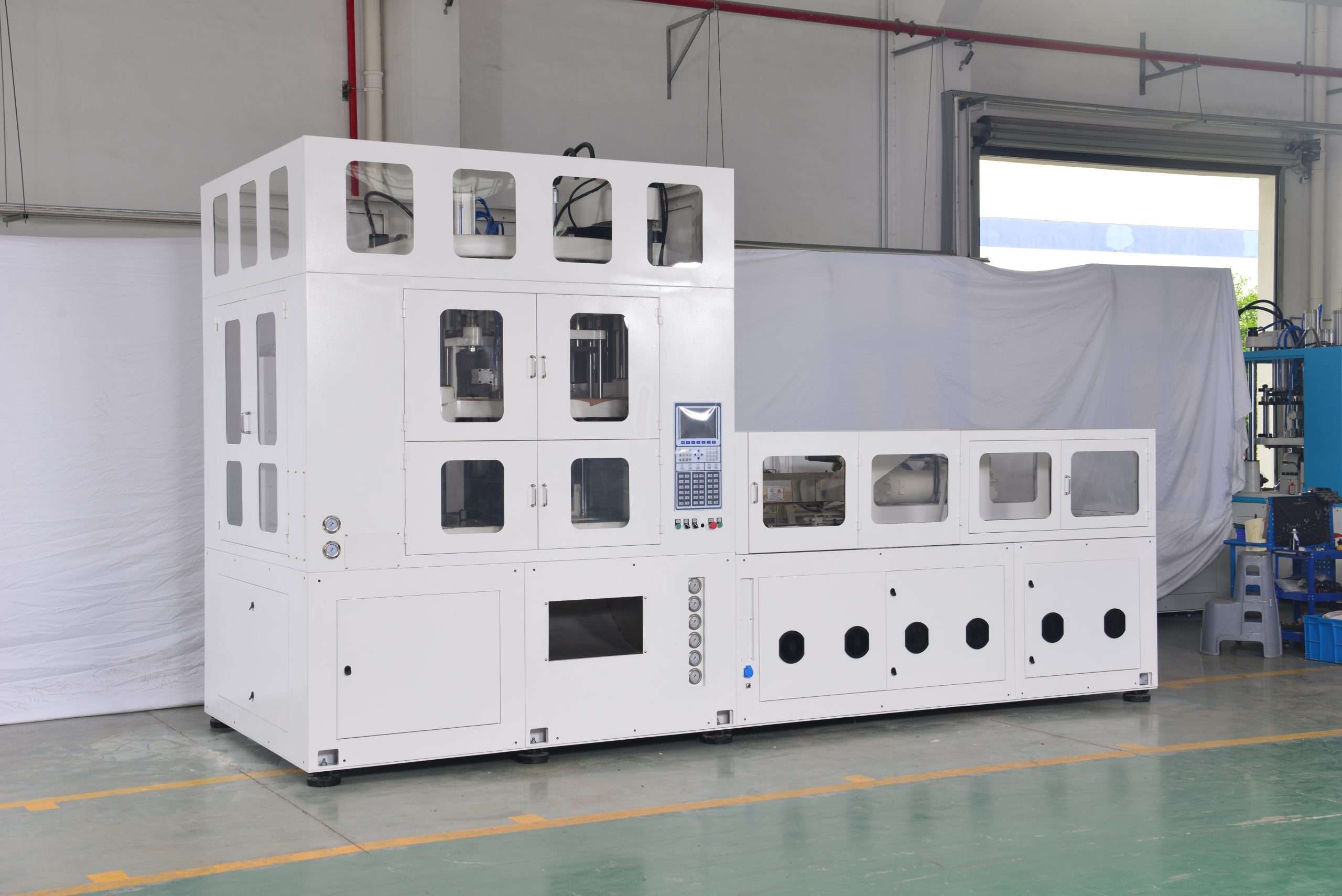

One-step PET ISBM
BPET-70V4 and BPET-125V4 provide one-step four-station injection blow and injection stretch blow functions. Exact selection depends on bottle volume, cavity count, neck design, wall distribution, resin and target output.

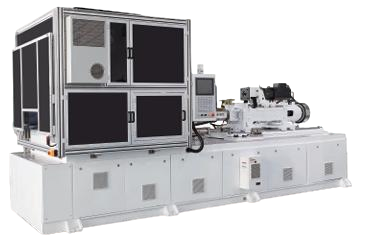

IBBM-50E high-value packaging
IBBM-50E is a fully electric horizontal four-station machine for PET and PETG high-value packaging, including skincare, perfume, serum and makeup bottles.

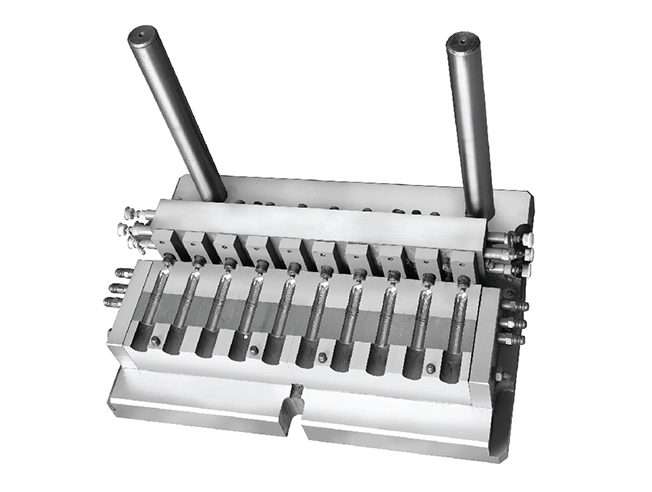

Matched moulds
Mould and auxiliary matching covers bottle and mould evaluation, cavity planning, neck and closure matching, trial production, process confirmation, loading, dosing, crushing, chilling, compressed air, mould temperature control and dehumidifying drying.
Information needed for model selection
- Bottle drawing or physical sample
- Intended resin and approved grade
- Bottle weight, volume and neck finish
- Required cavities and target output
- Appearance and wall-distribution requirements
- Site voltage, frequency, cooling water and compressed air
- Applicable inspection, documentation and regulatory requirements
See Applications or contact LIANXIN for a project review.
